Power Suply

Standard AC220V±10%,
50/60Hz power adapter (output DC48V)
Optional battery for 80-90 minutes

Laser Power

100w/200w/300w

Operating Ambient Temperature

5°C~40°C

Working Environment Humidity

≤ 80%

Average Laser Power

≥ 100W

Power Instability

< 5%

Laser Operation Mode

Pulse

Pulse Width

2-500ns

Max. Monopulse Energy

1.5mJ

Controlling Power Range (%)

10-100 (The Gradient is Adjustable)

Fiber Length

5m

Type of Cooling

Air cooling

Sweep Speed

Max. 1000mm/s

Field Lens Focal Length (mm)

160mm (Optional 254mm)

Scanning Range (L * W)

110*110mm (170*170mm),
Dual-axis supports 7 scanning modes

Control Mode

Wireless control panel

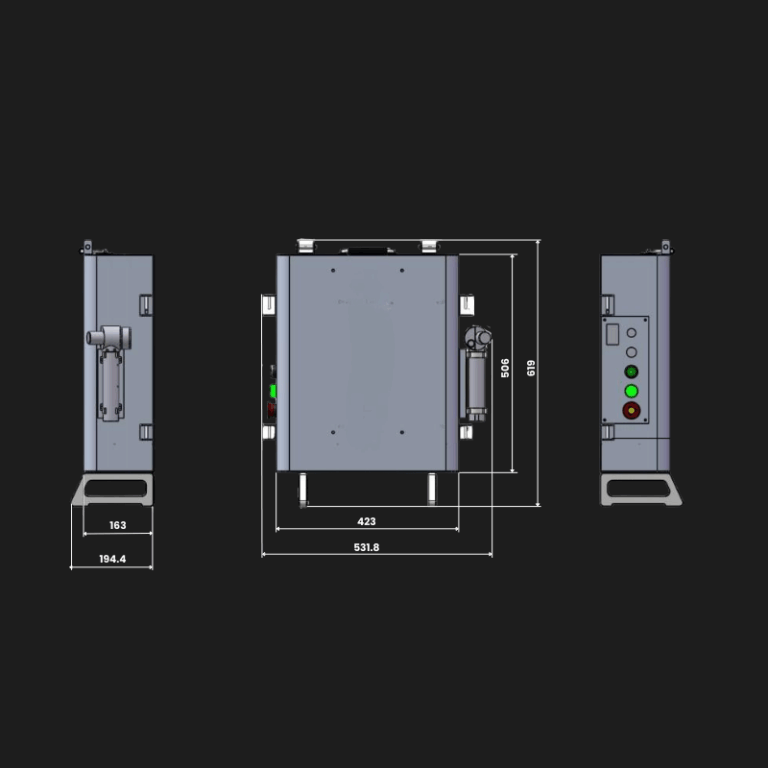

Main Engine Dimensions (L*W*H)

619*531*194mm (without battery)

Main engine dimensions (L*W*H)

619*513*273mm (including battery)

Weight

26Kg+5Kg (optional battery)
